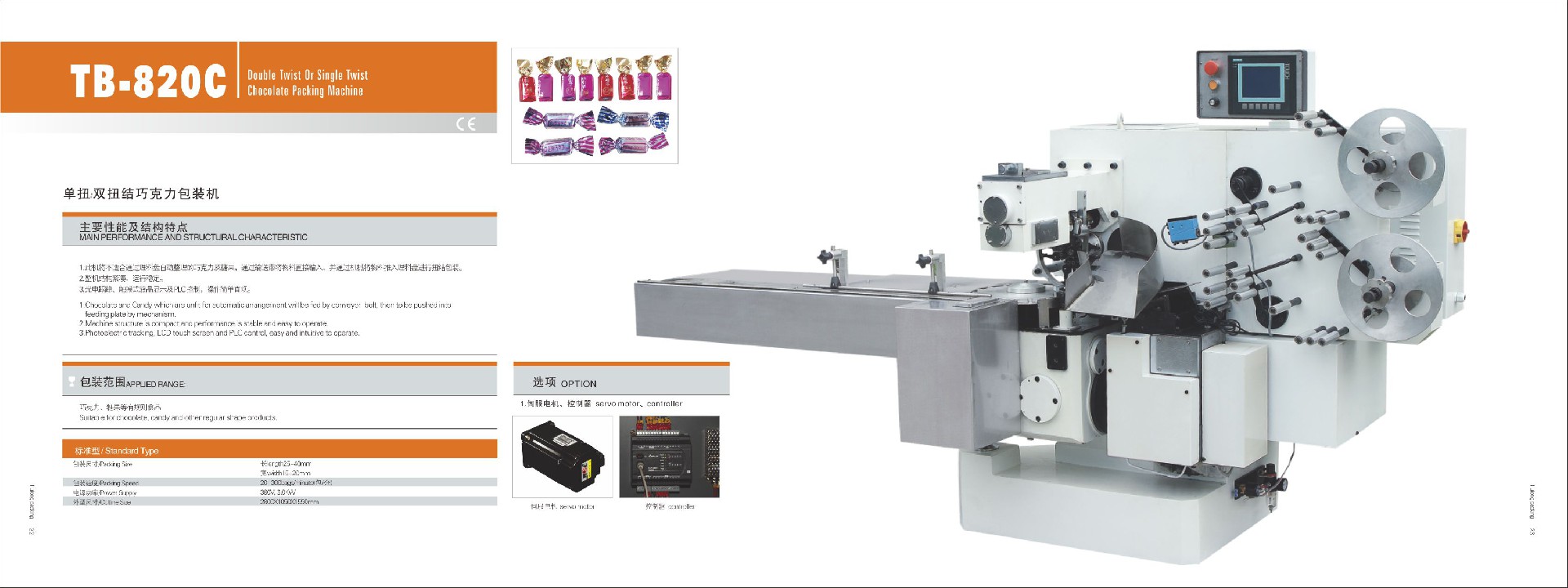

TB-820C-单扭/双扭结巧克力包装机


单扭/双扭结巧克力包装机

主要性能及结构特点

MAIN PERFORMANCE AND STRUCTURAL CHARACTERISTIC

1.此机将不适合通过理料盘自动整理的巧克力及糖果,通过输送带将物料直接输入,并通过机械将物料推入理料盘进行扭

   结包装。

2.整机结构紧凑,运行稳定。

3.光电跟踪、触摸式液晶显示及PLC控制, 操作简单直观。



1.Chocolate and Candy which are unfit for automatic arrangement wil be fed by conveyor belt,then to be

   pushed into feeding plate by m echanism.

2.Machine structure is compact and performance is stable and easy to operate.

3.Photoelectric tracking,LCD touchscreen and PLC control,easy and intuitive to operate.



包装范围APPLIED RANGE

巧克力、糖果等有规则食品

Suitable for chocolate, candy and other regular shape products.



标准型/Standard Type
包装尺寸/Packing Size

长length 25-40mm

宽width 15-20mm

包装速度/Packing Speed20-300bags/minute(包/分)
电源功率/Power Supply380V.3.0KW
外型尺寸/Outline Size2800X1050X1550mm
