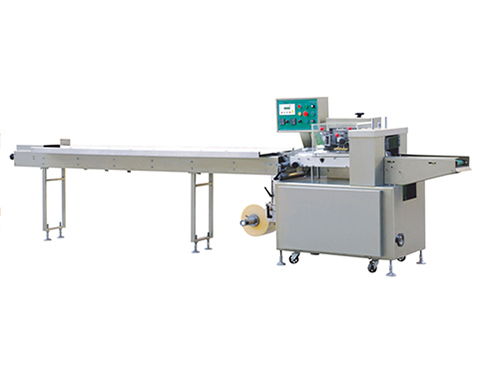

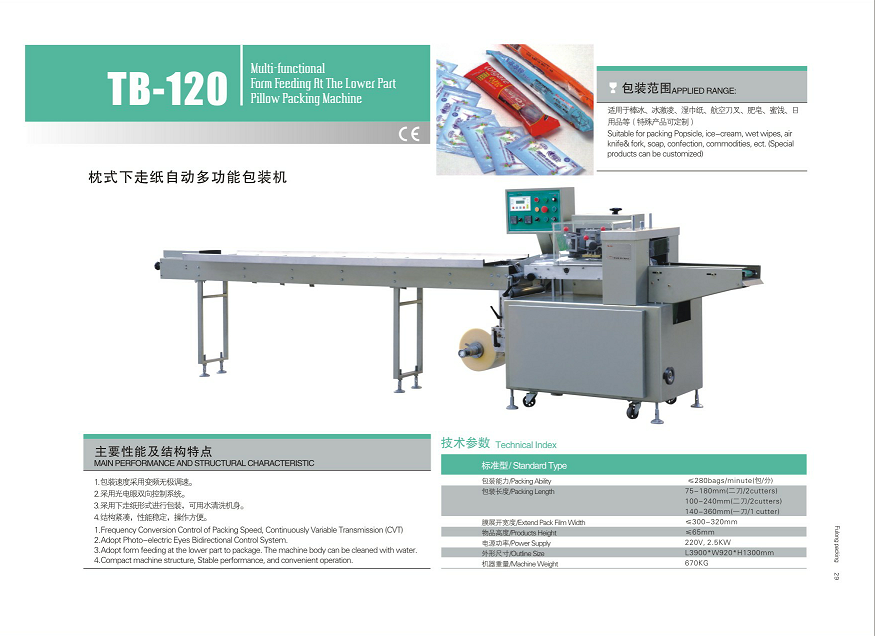

TB-120-Murlti-fumctional Form Feeding At The Lower Part Pillow Packing Machine

枕式下走纸自动多功能包装机

主要性能及结构特点

MAIN PERFORMANCE AND STRUCTURAL CHARACTERISTIC

1.包装速度采用变频无极调速。
2.采用光电眼双向控制系统。
3.采用下走纸形式进行包装，可用水清洗机身。
4.姑构紧凑，性能稳定，操作方便。

1.Frequency Corversion Control of Packing Speed, Continuously Variable Transmission(CVT)
2.Adopt Photo-electric Eyes Bidrectional Control System.
3.Adopt form feeding at the lower pant to package. The machine body can be deaned with water.
4.Cormpact machine stucture, Stable performanoe, and corvenient operation.

技术参数 Technical Index
标准型/ Standard Type
包装能力/Packing Ability	≤280bags/minute(包/分）
包装长度/Packing Lengh	75-180mm(二刀/2cutters) 100-240mm(二刀/2cutters) 140-360mm(一刀/1cutters)
膜展开宽度/Extend Pack Film Width	≤300-320mm
物品高度Products Height	≤65mm
电源功率/Power Supply	220V,2.5KW
外形尺寸/Outline Size	L3900×W9200×H1300mm
机器重量/Machine Weight	670KG

包装范围APPLIED RANGE:

适用于棒水、冰激凌、湿巾。航空刀叉、肥皂、宝饯、日用品等(特殊产品可定制)

Suitable for packing Popsicle, ice-cream, wet wipes, air knife&fork,soap,confection.commodftias, ect.

(Special products can be customized)
