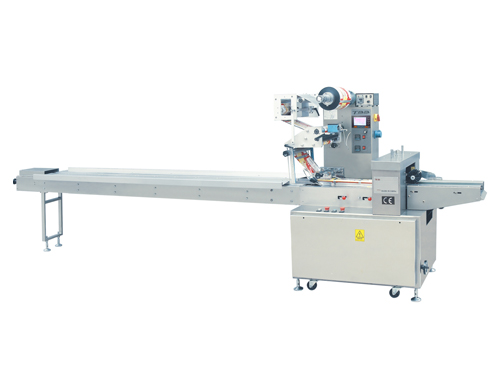

TB-350-多功能枕式包装机


多功能枕式包装机
主要性能及结构特点
MAIN PERFORMANCE AND STRUCTURAL CHARACTERISTIC

1.先进的双变频控制技术

2.精减传动机构、低噪音、易维护。

3.液晶文本显示,操作简便直观。

4.无极变速,包装袋长及速度均由变频器控制。

5.袋长调整及光电跟踪定位均在显示器完成操作,设定

   即可,无需动手。

6.纵封边宽可调动功能,并由纵封轮直接加热封口,使

   纹路清晰美观。

7.横封停机时角度可设定功能。

1.Advanced Double Frequency Conversion Control Technology.

2.Reduce the Transmission Mechanism, Low Noise,Easy to Maintain,

3.LCD, easy to operate

4.Continuously Variable Transmission (CVT), both bag length and  speed are controlled by Frequency Converter.

5.Bag length Adjusting and Photoelectric Tracking are operated on the Screen Display. Just setting, no need to manual.

6.Vertical Sealing Wldth adjustable, and Vertical   Sealing Wheel  Direct Heating. with clear and beautiful sealing lines.

7.When machine stops, Horizontal Sealing Angle

   can be set freely.













                                     送膜机构采用

                                     伺服系统装置

                                     快速 准确 高效



                             Send The Packing Film Mechanism

                                  With Servo System Device

                                     Fast Accurate Effticient



技术参数 Technical Index

 可附加选项

 ADDIMTIONAL OPTIONS

制袋尺寸/Bag sizes:

长(L)90-180mm(两刀/two cutters)

长(L)140-360mm(一刀/one cutter)

宽(W) 35-150mm

高(H)≤60mm

1.期打印装置      Date Pinter

2.自重式落料器  Gaity Feeding

                                 Device

3.横封打孔装      Horizontal Seal

                           Punching Devibe

4.充氮气装置      Nitrogen Feedng

                                  Device

5.脱氧剂滑槽      Deoxidizer Chute

6.横封插角装置   Horizontal Seal

                            Inser Equipment

包装速度/Packing speed:25-220bags/minute
包装膜宽/Packing film width:100-350mm
电源功率/Pover suppy:220V/3.2KW
外形尺寸/Outline Size:L4450*W1050*H1600
机器重量Machine Weight:500KG



包装范围APPLIE RANGE

饼干、面包、巧克力、月饼、香皂、药品、日用品、五金零件、纸盒托盘等各类固体有规则物体包装。

Biscuit,Bread, Chocolate, Cake Soap, Medcine,Comodity. Hardware Part, Carton Tray, and other regular solid products
