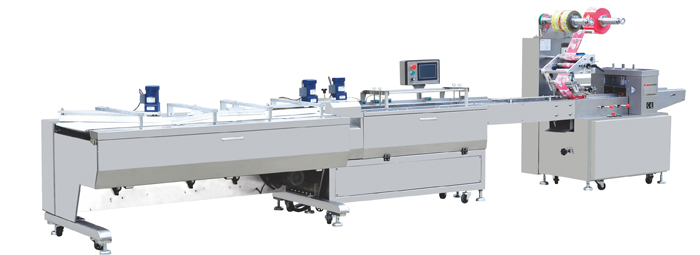

自动理料枕式包装机 AAS-Y |
主要性能及结构特点 MAIN PERFORMANCE AND STRUCTURAL CHARACTERISTIC |
1.单线包装系统可以很好的与前一-道生产线连接，来满足大数量，单一产品的包装要求。同时，客户可以把产品投放到 2.通过交叉理料系统，输送带可以输送和整理不同形状的产品排成一行，比如长方形，圆形，线形，等。 3.该系统可以根据产品特性设计，通过个性化的设计，在理料过程中如果产品卡住、重叠或位置不对，都可以自动排除。 4.该系统采用多频调整，伺服电机控制。 5.以人为本的设计，安装清洗方便。 6.全自动包装。
1.Single ling packing system can be well connected with the former production line, to meet big quantity, single products packing requirements. Besides. customer can dump. Products on feeding belts, to meet small quantity, different kinds of products packing requirements. 2.By intersection feeding system, the belt can feed and arrange different shapes of products in a line, such as rectangular,round, line shape products, etc. 3.This system can be designed according to products features, with characterized design, the products can be eliminated automatically, When they are stucked, overlapped, or in wrong position during feeding. 4.This system adopts multi- frequency adjustment, servor-motor control. 5.Human-oriented design, easy for installment and cleaning. 6.Fully automatic packing utility. |
| 技术参数 Technical Index | |
| 外型尺寸/Outdimension | 5840X950X1400mm |
| 理料速度/Feeding speed | 45meters/min 45米/分钟 |
| 包装速度/Packing speed | 0-350(depended by packing material and products size) 取决于包装材料和产品尺寸 |
| 总功率/General Power | 5kw |
| 噪音/Noise | ≤78 |
| 电源类型/Power supply type | 220V 50HZ |
| 袋长BAGLENGTH: | 4刀:55- 80毫米; four sealing cutter: 55 -80mm 3刀: 60-115毫米; three sealing cutters: 60-115mm 2刀: 90- 160毫米two sealing cutters: 90- 160mm |
| 尺寸SIZE: | 长L X宽W X高H=5840X960X1400mm |
袋高BAG HEIGHT： 膜宽FILM WIDTH: | ≤45mm ≤250mm |
| 重量WEIGHT: | 约1600公斤 1600KGS |
| 包装范围APPLIED RANGE: |
饼干，面包，巧克力，蛋糕，威化饼等块状类物品。 Biscuit,bread,chocolate.cake,wafer,hardware part,soap.commodity,etc |
