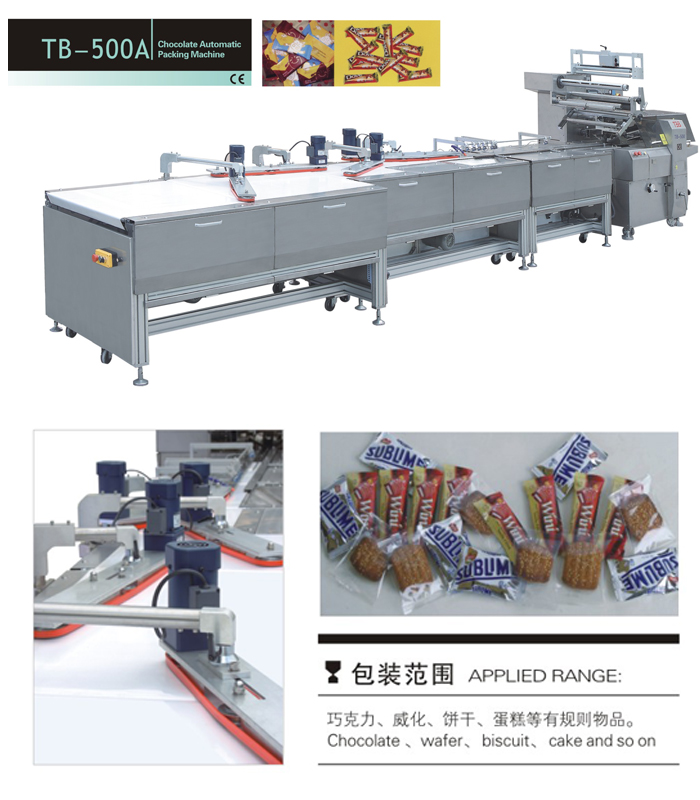

TB-500A-自动料理包装机


自动料理包装机

主要性能及结构特点

MAIN PERFORMANCE AND CONSTRUCTION CHARACTERISTIC

  1. 自动理料采用伺服及PLC控制系统

  2. 将物品精确的进行整理、排列及进入包装

  3. 整机结构紧凑、性能稳定、操作简单

  4. 横封切刀停车角度可随意设定,纵封轮在停机状态时,自动打开

  5. 液晶显示屏操作,简便直观

  1.chocolate was arranged by servo control system and PLC control system

  2.chocolate automatic arrange in high speed then enter packing

  3.the structure of machine is logical and prerformace is stable and easy to operate

  4.angle of horizontal sealing cutter can be set at liberty, vertical sealing wheel

     can automatic open when machine stop so it can ensure

  5.with LCD touch screen



TECHICAL PARAMETER
LENGTH OF PACKING FILM

60-90mm(four cutters)

75-120mml(three cutters)

75-180mm(two cutters)

PACKING SPEED50-460bags/min
POWER220v 4.5kw
OVERALL SIZEL6700XW1060XH1700(mm)
WEIGHT1800KG
技术参数
包装纸长度

60-90mm(四刀)

75-120mm(三刀)

75-180mm(二刀)

包装速度50-460bags/min(包/分钟)
电源220v 4.5kw
机器尺寸L6700XW1060XH1700(mm)
重量1800KG

包装范围APPLIED RANGE:
巧克力、威化、饼干、蛋糕等有规则物品。
Chocolate、wafer、 biscuit、 cake and so on
